Looking for flatbed gooseneck trailers?  That’s why you’re here.  You want to shop and compare.  What is the number one question you are trying to answer when shopping for a gooseneck flatbed trailer?  For 99% of our customers, they are looking for the best gooseneck trailer their money can buy.

In other words, all gooseneck flatbed trailers look alike, however, YOU are looking for the flatbed gooseneck trailer that will last the longest.   Here at GoBob, we could sell any gooseneck flatbed trailers we wanted to.  But like our other products, we CHOOSE to sell only the best.  We trust that YOU know, that over the life of any equipment, the BEST is always the most economical.

After you study this website and carefully compare what you learn here and from other flatbed gooseneck trailer manufacturers, you will be convinced that the Red Rhino gooseneck flatbed trailers are the finest, quality constructed and longest lasting flatbed gooseneck trailers period!

Red Rhino - The Best Flatbed Trailers... PERIOD.

It’s what is underneath a gooseneck flatbed trailer that determines the durability and whether it will perform for years trouble free.

Most trailer manufacturers use channel for their side rails, cross-members and bumpers.  The cheapest trailers even resort to angle iron (egad!).  Red Rhino trailers utilize rectangular tubing for these components.   Rectangular tubing adds strength because it is a four-sided structural shape without adding a lot of weight.  It also protects the light connections as the backside is enclosed within the tubing.

Rear bumper and side rails constructed of rectangular tubing.  Adds strength without adding much weight.  Protects the light connections from mud, snow and ice
Rear bumper and side rails constructed of rectangular tubing.  Adds strength without
adding much weight.  Protects the light connections from mud, snow and ice.

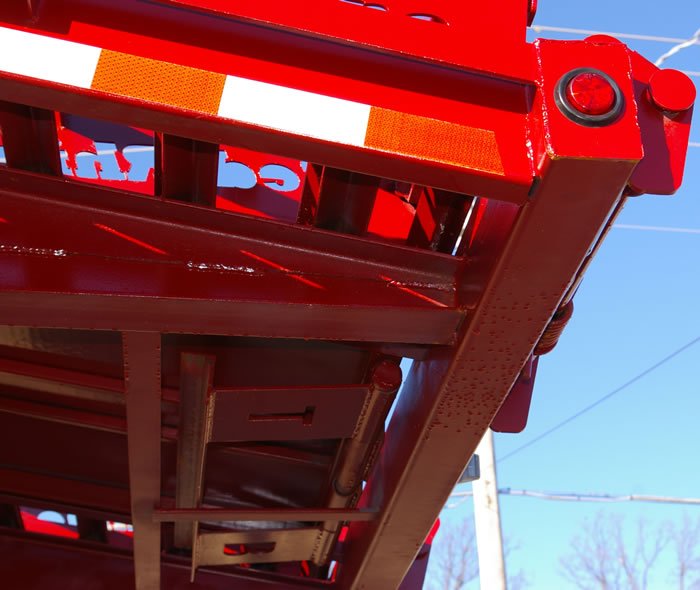

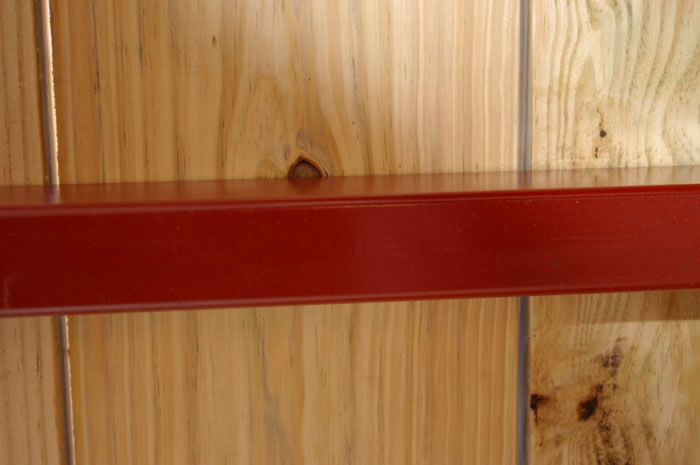

Cross-members are rectangular tubing as well, increasing strength without weight so your payload is not reduced.  These cross-members are on 16” centers, not 18” as in some trailers.  Flooring is treated with M2C that will not corrode your screws
Cross-members are rectangular tubing as well, increasing strength without weight so your
payload is not reduced.  These cross-members are on 16” centers, not 18” as in some trailers.
  Flooring is treated with M2C that will not corrode your screws.

Micro fractures caused by metal fatigue are the number one cause of main beam failure and it ultimately ends the life of a gooseneck flatbed trailer.

These fractures are caused by constant twist and flex of your main-beams. All Red Rhino gooseneck flatbed trailers are built with a torsion tube under the frame that minimizes this torsion. Some cheap trailer manufacturers scoff at the idea but we believe a torsion tube will DOUBLE the life of your trailer.

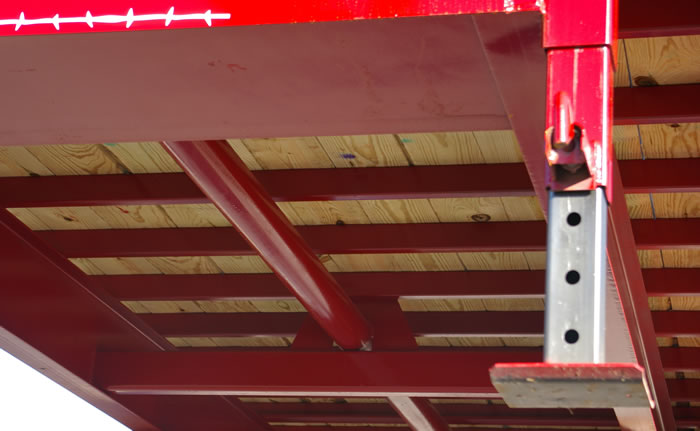

This is a view of the bottom side of a Red Rhino flatbed gooseneck trailer.  Notice the 4 ½”OD pipe running down the center of the frame.  This is the torsion tube.  It is tied to the main-beam at three points.  Also note the underside of Red Rhino hay trailers are primed and painted.  Many trailer manufacturers do not paint the underside.
This is a view of the bottom side of a Red Rhino flatbed gooseneck trailer.  Notice the 4 ½”OD pipe
running down the center of the frame.  This is the torsion tube.  It is tied to the main-beam at
three points.  Also note the underside of Red Rhino hay trailers are primed and painted.  Many
trailer manufacturers do not paint the underside.

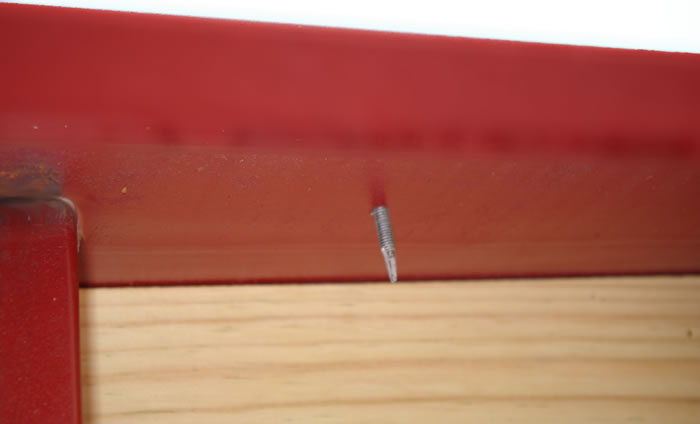

This is a view of the rectangular side rail.  The screw you see protruding fastens the light fixture on the other side.  Notice no wires or connections are exposed.  Otherwise, these connections might catch mud, snow or even brush.  All other wiring in the Red Rhino is enclosed in 1.05”OD Schedule. 40 pipe, not conduit.
This is a view of the rectangular side rail. The screw you see protruding fastens the light fixture on the
other side. Notice no wires or connections are exposed. Otherwise, these connections might catch mud,
snow or even brush. All other wiring in the Red Rhino is enclosed in 1.05”OD Schedule. 40 pipe, not conduit.

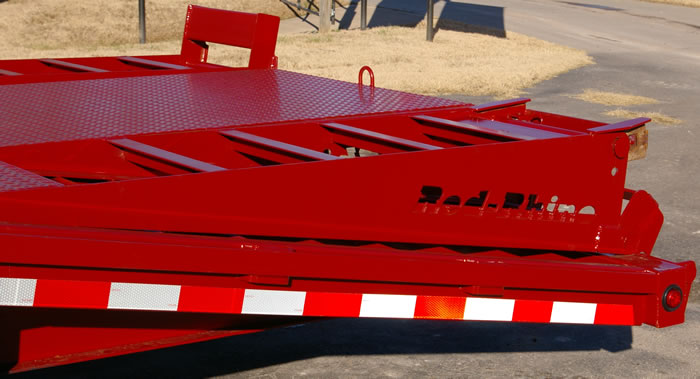

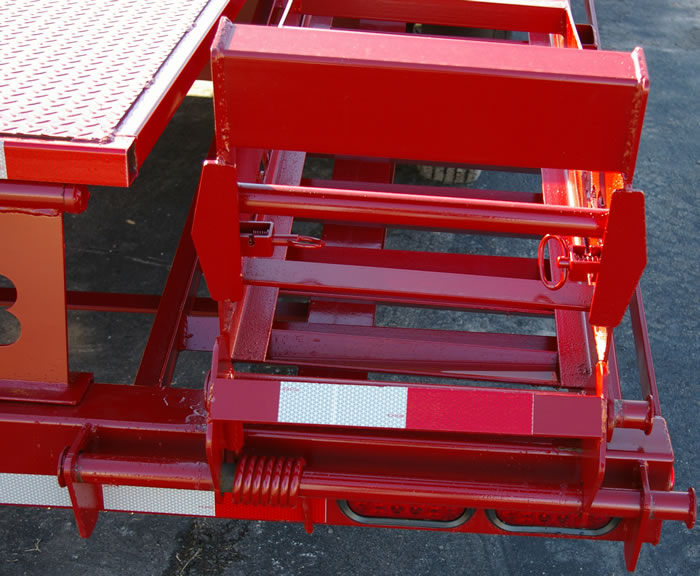

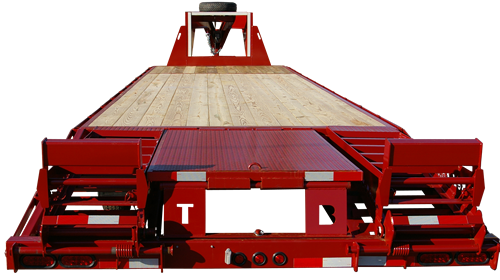

The ramps on the Red Rhino come standard with load equalizers and are spring assisted. Many gooseneck flatbed manufacturers do not provide these stabilizers. Without them, when loading equipment, you would not only pick up the rear end of your truck, but you would add longitude stress to your main beams.

Equalizers are adjustable...
Equalizers are adjustable...

...so they will lay down flat when you need the entire bed
...so they will lay down flat when you need the entire bed.

With the Red Rhino, you have a choice of the five-foot ramps other manufacturers produce or our versatile six foot ramps.

A six-foot ramp reduces the angle or “steepness” of the ramps when loading. More importantly it makes your trailer more versatile in that you can load equipment with lower ground clearance, like an automobile. All stock standard-height Red Rhinos are equipped with six-foot ramps.

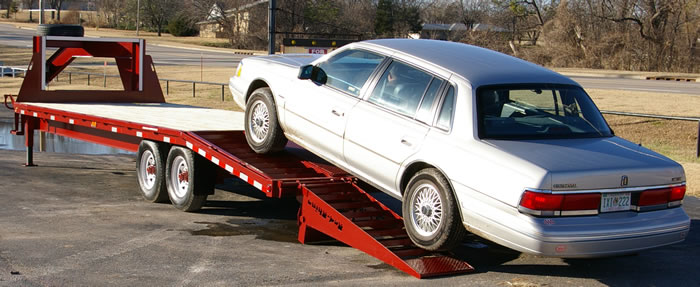

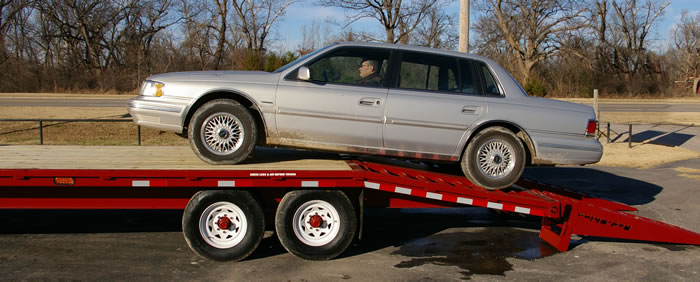

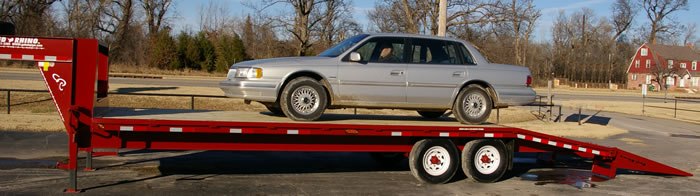

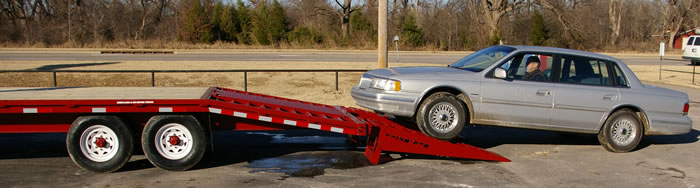

Twenty-six foot 7K trailer, equipped with six foot ramps being loaded with this low ground clearance vehicle.
Twenty-six foot 7K trailer, equipped with six foot ramps being loaded with this low ground clearance vehicle.

Twenty-six foot 7K trailer, equipped with six foot ramps being loaded with this low ground clearance vehicle

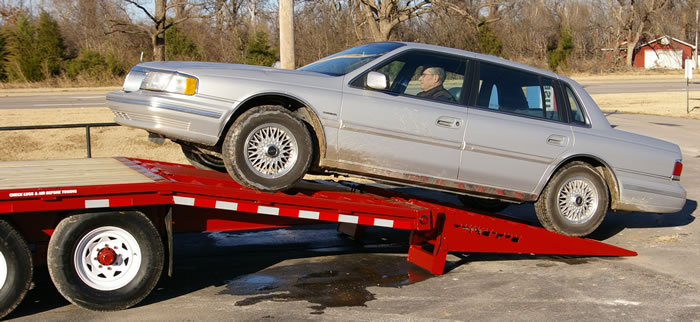

Notice how this vehicle easily clears the trailer because of the six-foot ramps
Notice how this vehicle easily clears the trailer because of the six-foot ramps.

All loaded!  And…
All loaded — and…

Look ma!  No truck attached!  Now that’s stability!
Look, Ma!
No truck attached! Now that’s stability!

Red Rhino gooseneck flatbed trailers come standard with many features that other manufacturers charge extra for...

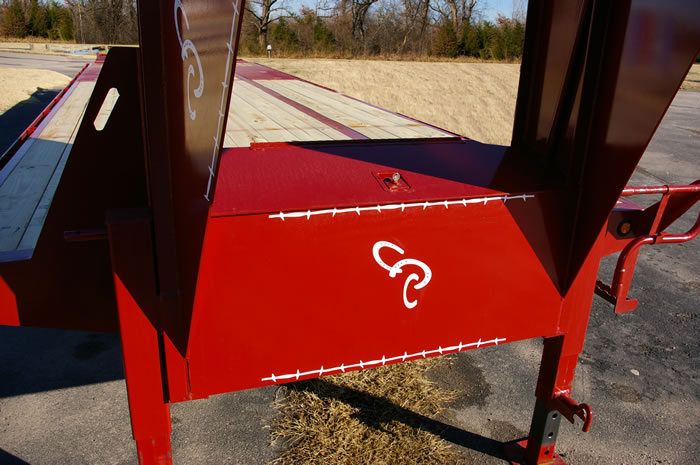

Locking tool box – standard!
Locking tool box — standard!

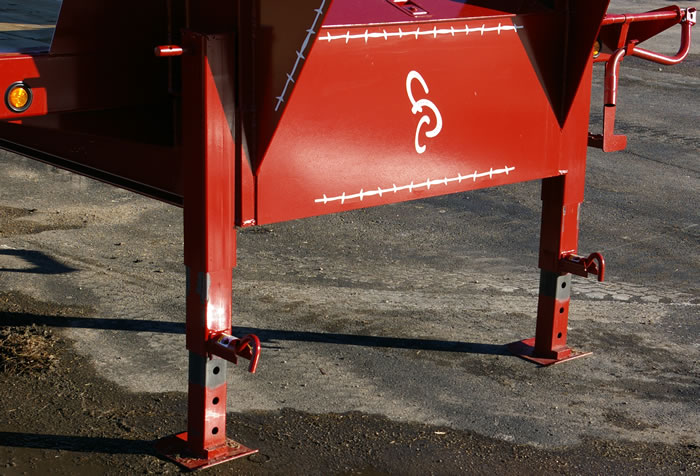

Dual jacks – standard!
Dual jacks – standard!

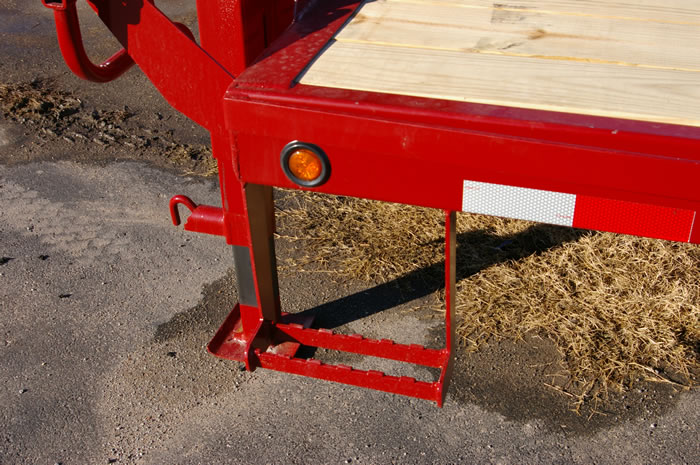

Side steps – standard!
Side steps – standard!

Grab handles above side steps – standard!
Grab handles above side steps – standard!

LED lights on all stock trailers – standard, plus, these are mid-shift turn signals – the center and rear maker lights flash when turning.
LED lights on all stock trailers — standard, plus, these are mid-shift turn
signals — the center and rear maker lights flash when turning.

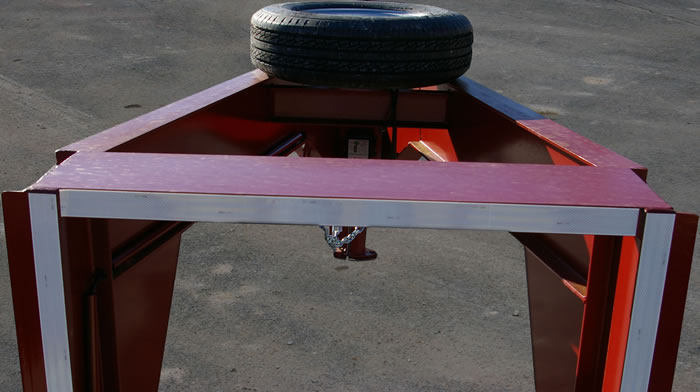

Spare tire & wheel on all stock trailers – standard!
Spare tire & wheel on all stock trailers – standard!

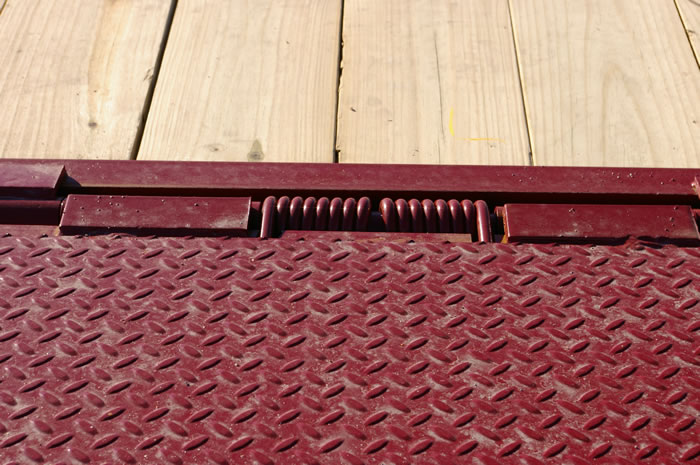

Dual spring assist on all pop-up centers.  If you build a heavy duty pop-up, you have to have spring assist.
Dual spring assist on all pop-up centers. If you build a heavy duty pop-up, you have to have spring assist.

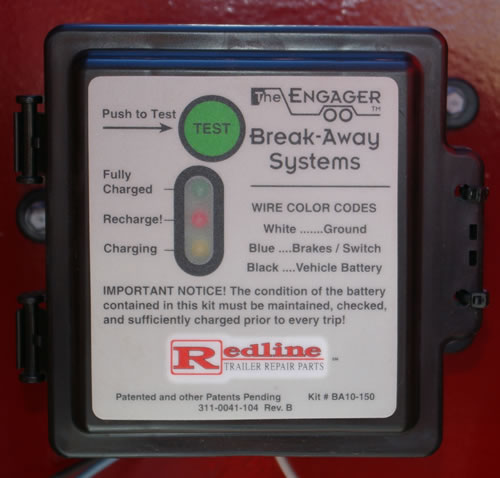

All Red Rhino’s are equipped with safety chains and break-away systems.
All Red Rhinos are equipped with safety chains and break-away systems.

Red Rhino flatbed gooseneck trailers meet and EXCEED NATM and DOT requirements.

North American Trailer Dealers Association

Red Rhino flatbed gooseneck trailers meet and EXCEED NATM and DOT requirements.



The Red Rhino BEAST Trailer

The BEAST?

Your Rough Terrain has met it's match...
This is one tough trailer!

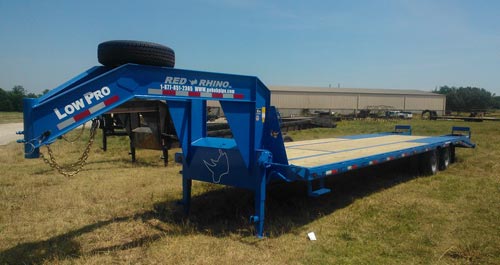

BLUE RHINO?

Yes, we can do custom colors.
This customer is a New Holland dealer.

Blue Rhino - Blue is the New Red!  Whatever a Customer Needs!





Custom Trailer Gallery - Click Here!








Red Rhino flatbed gooseneck trailers are available in lengths from twenty feet to forty feet.  They ALL are equipped with torsion tubes and the standard features mentioned earlier.  They ALL are equipped with steel belted radial tires.



Red Rhino 7K trailers have 12” 16 lb. main beams (some manufacturers use only 14 lb.) and 7000 lb. Dexter axles.

Red Rhino 10K trailers have 12” 19 lb. main beams (some manufacturers use only 16 lb.) and 10,000 Dexter axles.   12,000 lb. axles are available.



WHAT OUR CUSTOMERS SAY:

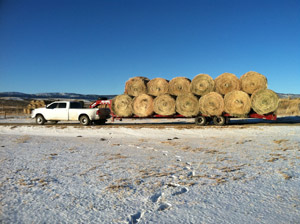

Customers Flatbed Trailer with 20 Hay Bales

From a Customer:
The trailer pulls great.  Here's a pic of our trailer loaded with 20 bales. As I said before, my sons friend liked it, asked if we would sell it and we did. Now we want another.

- Jim Donkersgoed, Wyoming


From a Customer:

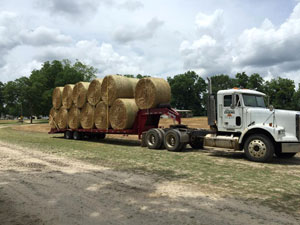

2015 wheat straw 23 bales thanks for the trailer it works great!

- Kirby Smith, Georgia

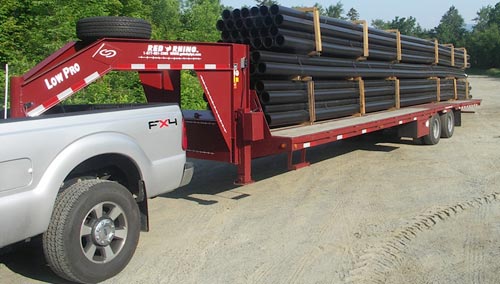

Trailer in service at Sugarloaf Golf in Northern Maine.

This trailer has been fantastic…

- Warren Michaelsen

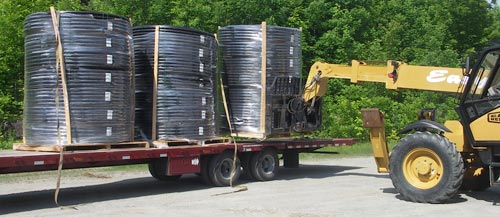

Sugarloaf…. each stack (7) 500 ft rolls of 2” HDPE @ 300# each…

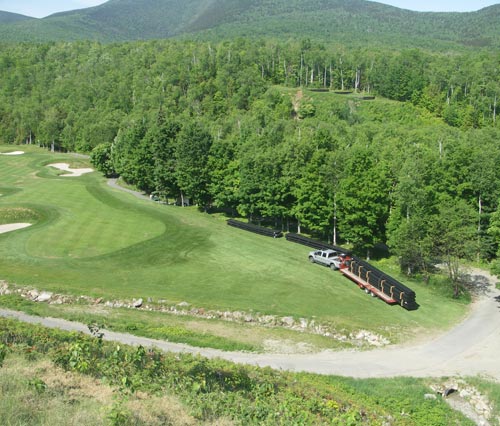

Sugarloaf Staging area

Call GoBob Today to speak with knowledgable customer service reps like Maurice

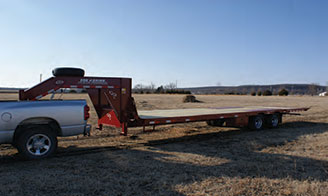

look for can prevent metal fatigue from ending the useful life
of heavy-duty flatbed trailers

READ MORE::

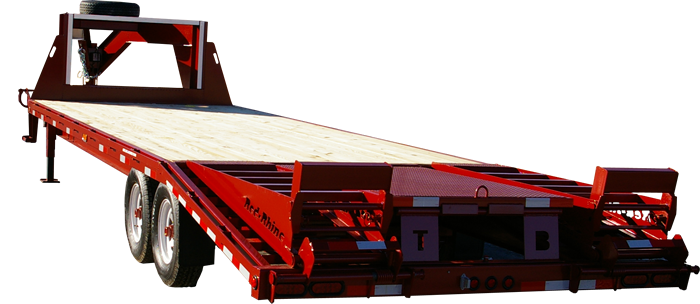

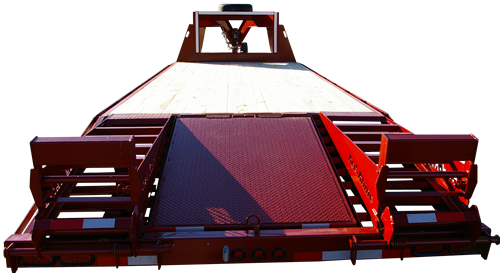

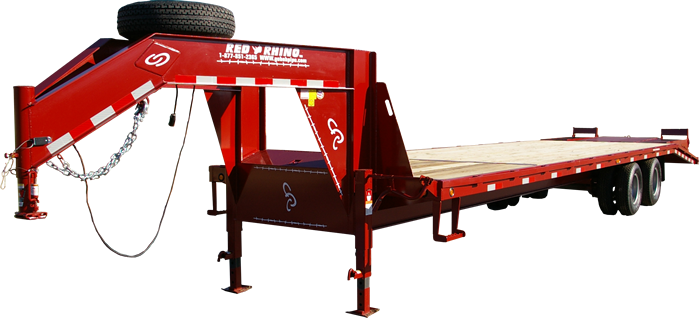

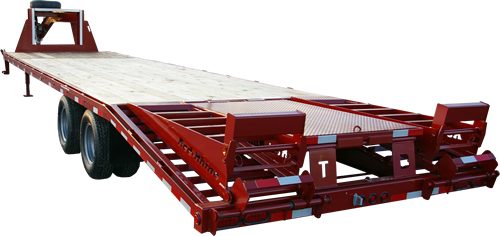

Red Rhino 26 foot, 7K with six foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 26 foot, 7K with six foot ramps, pop-up center, LED lights and spare tire mounted.

Red Rhino 26 foot, 7K with six foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 26 foot, 7K with six foot ramps, pop-up center, LED lights and spare tire mounted.

Red Rhino 26 foot, 7K with six foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 26 foot, 7K with six foot ramps, pop-up center, LED lights and spare tire mounted.


Red Rhino 33 foot, 10K with six foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 33 foot, 10K with six foot ramps, pop-up center, LED lights and spare tire mounted.

Red Rhino 33 foot, 10K with six foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 33 foot, 10K with six foot ramps, pop-up center, LED lights and spare tire mounted.

Red Rhino 33 foot, 10K with six foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 33 foot, 10K with six foot ramps, pop-up center, LED lights and spare tire mounted.

Red Rhino 33 foot, 10K with six foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 33 foot, 10K with six foot ramps, pop-up center, LED lights and spare tire mounted.

Red Rhino also offers the finest 10K and 12K low profile trailers on the market. A low profile trailer in created by piercing the main beams and running the cross members through them, instead of on top of them. We also use lower profile tires and place deck plate over the wheel wells. This lowers the deck of the trailer by 5 inches. Subsequently the low profile lowers the center of gravity and makes getting up and down from the deck much easier.

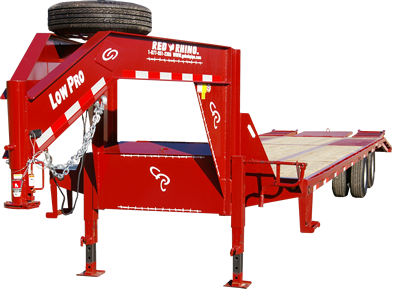

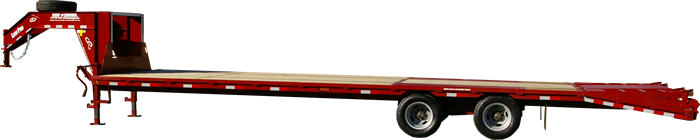

Red Rhino 32 foot, 10K Low Pro with five foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 32 foot, 10K Low Pro with five foot ramps, pop-up center, LED lights and spare tire mounted.

Red Rhino 32 foot, 10K Low Pro with five foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 32 foot, 10K Low Pro with five foot ramps, pop-up center, LED lights and spare tire mounted.

Red Rhino 32 foot, 10K Low Pro with five foot ramps, pop-up center, LED lights and spare tire mounted.
Red Rhino 32 foot, 10K Low Pro with five foot ramps, pop-up center, LED lights and spare tire mounted.

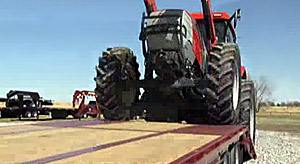

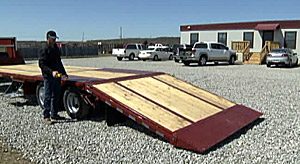

Now available, Hydraulic Dovetail Trailers

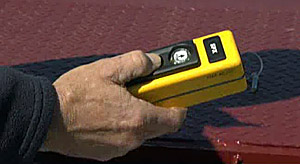

Push Button Operation! No More Messing with Ramps! No More Lifting!

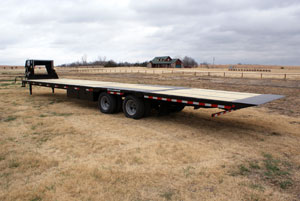

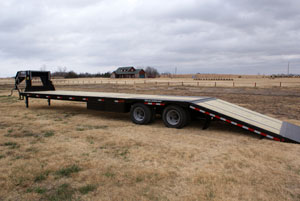

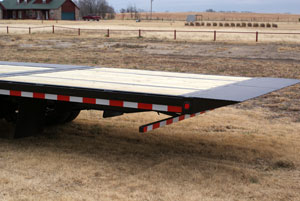

40 ft. HydraSled

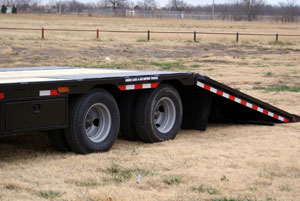

This 40ft HydraSled model comes equipped with the HydraSled
hydraulic dovetail, 10K axles, and LED lights.



GUESS WHAT WE GOT?



U.S. Patent No. 8,794,859

 It’s now official.  Our unique and innovative dovetail locking system is no longer patent pending!

 Watch the video to see why the HydraSled is the best, most dependable dovetail system you can buy.

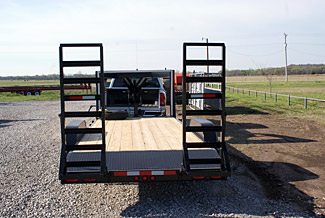

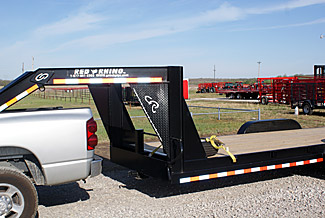

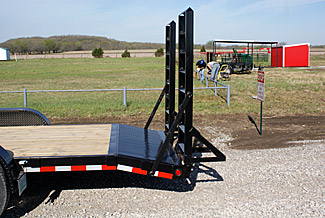

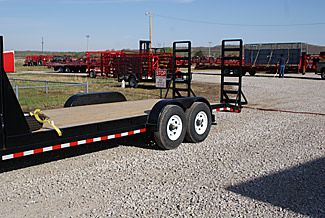

Also available, the Car Hauler!

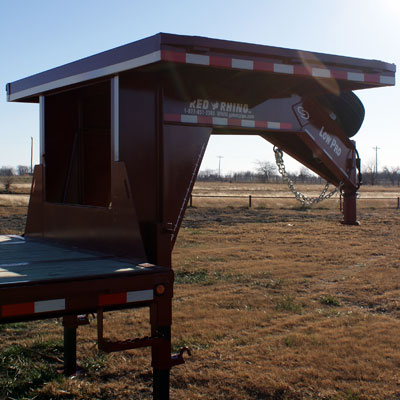

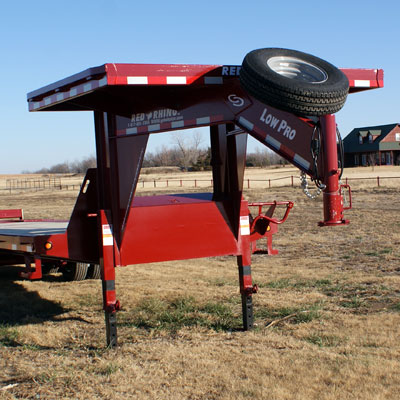

NEW - the Neck Deck Option


PRODUCTS: From time to time, small changes in design or materials used in these products may occur and we cannot always make the changes to photographs or content very quickly. Slight variations may occur to the products depicted on this page.



Custom Trailer Gallery - Click Here!



Build YOUR Trailer!





You should clearly see now why we make the claim:

RED RHINO TRAILERS ARE THE BEST TRAILERS YOU CAN OWN… PERIOD!

and you can find them only at GoBob Pipe & Steel Sales.

Pick up the phone today let us price you the trailer you want — a trailer that is trouble free longer and will last longer than any other gooseneck flatbed made.
